4WVP
Target information
- RCSB PDB
- 4WVP
- Title
- Crystal structure of an activity-based probe HNE complex
- Method
- X-RAY DIFFRACTION
- Resolution
- 1.63
- Classification
- Hydrolase/Hydrolase Inhibitor
- Organism
- synthetic construct
- Protein
- Neutrophil elastase (P08246)    Looking for covalent inhibitors of this target ?
- Year
- 2015
- Publication Title
- The Elastase-PK101 Structure: Mechanism of an Ultrasensitive Activity-based Probe Revealed.
- Abstract
-
Human neutrophil elastase (HNE) plays a central role in neutrophil host defense, but its broad specificity makes HNE a difficult target for both inhibitor and probe development. Recently, we identified the unnatural amino acid containing activity-based probe PK101, which exhibits astounding sensitivity and selectivity for HNE, yet completely lacks mechanistic explanation for its unique characteristics. Here, we present the crystal structure of the HNE-PK101 complex which not only reveals the basis for PK101 ultrasensitivity but also uncovers so far unrecognized HNE features. Strikingly, the Nle(O-Bzl) function in the P4 position of PK101 reveals and leverages an "exo-pocket" on HNE as a critical factor for selectivity. Furthermore, the PK101 P3 position harbors a methionine dioxide function, which mimics a post-translationally oxidized methionine residue and forms a critical hydrogen bond to the backbone amide of Gly219 of HNE. Gly219 resides in a Gly-Gly motif that is unique to HNE, yet compulsory for this interaction. Consequently, this feature enables HNE to accommodate substrates that have undergone methionine oxidation, which constitutes a hallmark post-translational modification of neutrophil signaling.
- External Link
- RCSB PDB
Ligand information
- HET
- 3V2
- Chain ID
- I
- HET Number
- 106
- Molecular Formula
- C63H92N7O16PS2

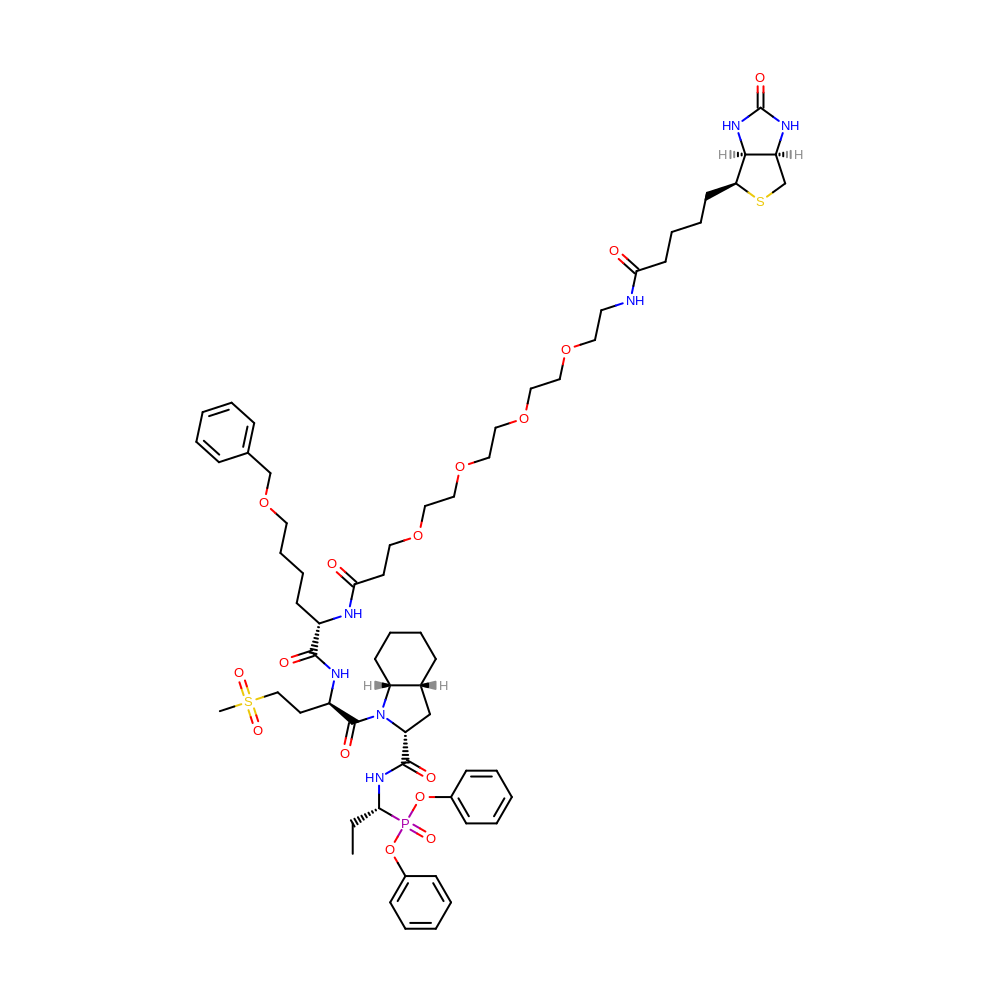

- Structure
-
- IUPAC Name
- (2R,3aR,7aR)-1-[(2R)-2-[[(2S)-2-[3-[2-[2-[2-[2-[5-[(3aS,4S,6aR)-2-oxo-1,3,3a,4,6,6a-hexahydrothieno[3,4-d]imidazol-4-yl]pentanoylamino]ethoxy]ethoxy]ethoxy]ethoxy]propanoylamino]-6-benzyloxy-hexanoyl]amino]-4-methylsulfonyl-butanoyl]-N-[(1R)-1-diphenoxyphosphorylpropyl]-2,3,3a,4,5,6,7,7a-octahydroindole-2-carboxamide
- InChI
- InChI=1S/C63H92N7O16PS2/c1-3-58(87(77,85-48-22-9-5-10-23-48)86-49-24-11-6-12-25-49)68-61(74)54-43-47-21-13-14-27-53(47)70(54)62(75)51(31-42-89(2,78)79)66-60(73)50(26-17-18-33-84-44-46-19-7-4-8-20-46)65-57(72)30-34-80-36-38-82-40-41-83-39-37-81-35-32-64-56(71)29-16-15-28-55-59-52(45-88-55)67-63(76)69-59/h4-12,19-20,22-25,47,50-55,58-59H,3,13-18,21,26-45H2,1-2H3,(H,64,71)(H,65,72)(H,66,73)(H,68,74)(H2,67,69,76)/t47-,50+,51-,52+,53-,54-,55+,58-,59+/m1/s1
- InChI Key
- UXMWHZDAJFVMKQ-CDPJVKFLSA-N
- Canonical SMILES
- CC[C@H](NC(=O)[C@H]1C[C@H]2CCCC[C@H]2N1C(=O)[C@@H](CCS(C)(=O)=O)NC(=O)[C@H](CCCCOCc1ccccc1)NC(=O)CCOCCOCCOCCOCCNC(=O)CCCC[C@@H]1SC[C@@H]2NC(=O)N[C@H]12)P(=O)(Oc1ccccc1)Oc1ccccc1
- Bioactivity data
- No bioactivity data available for this ligand.
Covalent Binding
- Warhead
- Phosphonate
- Reaction Mechanism
- Phosphorylation
- Residue
- SER : 195
- Residue Chain
- E
- Interactions
- Pharmacophore Model
